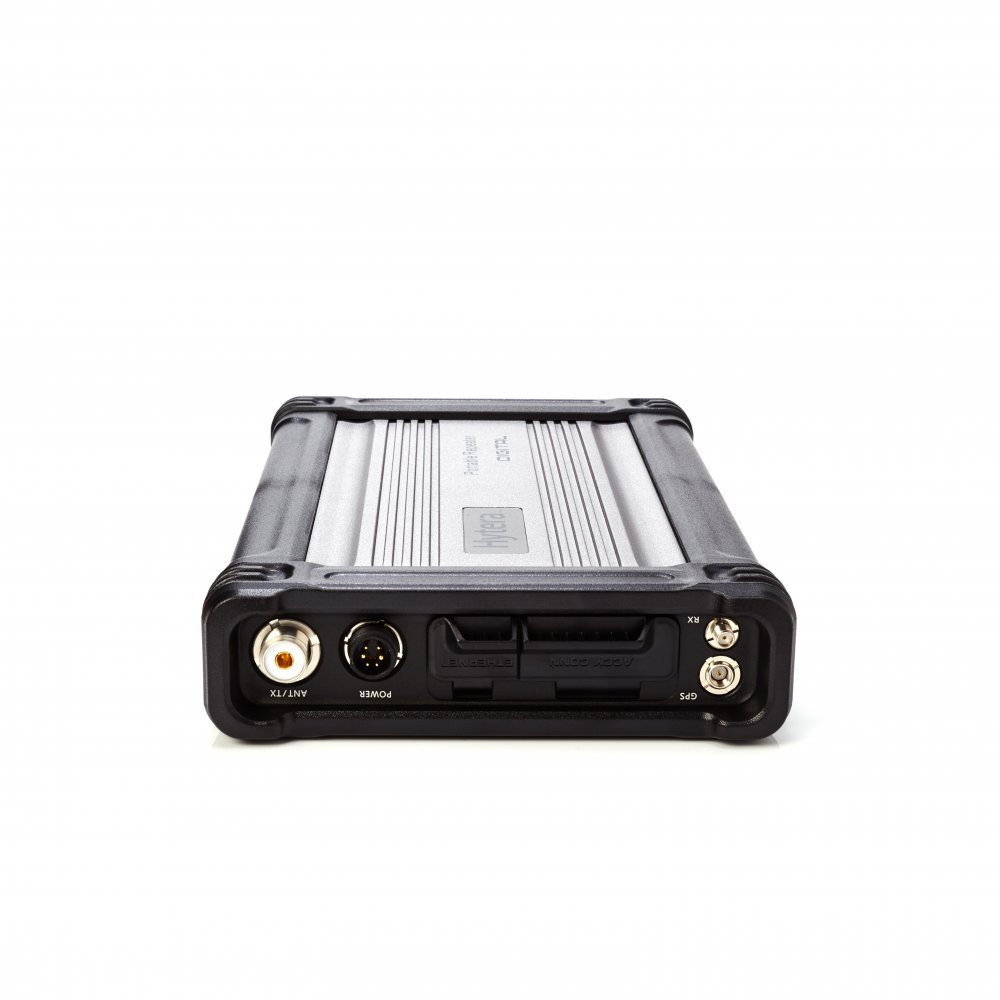

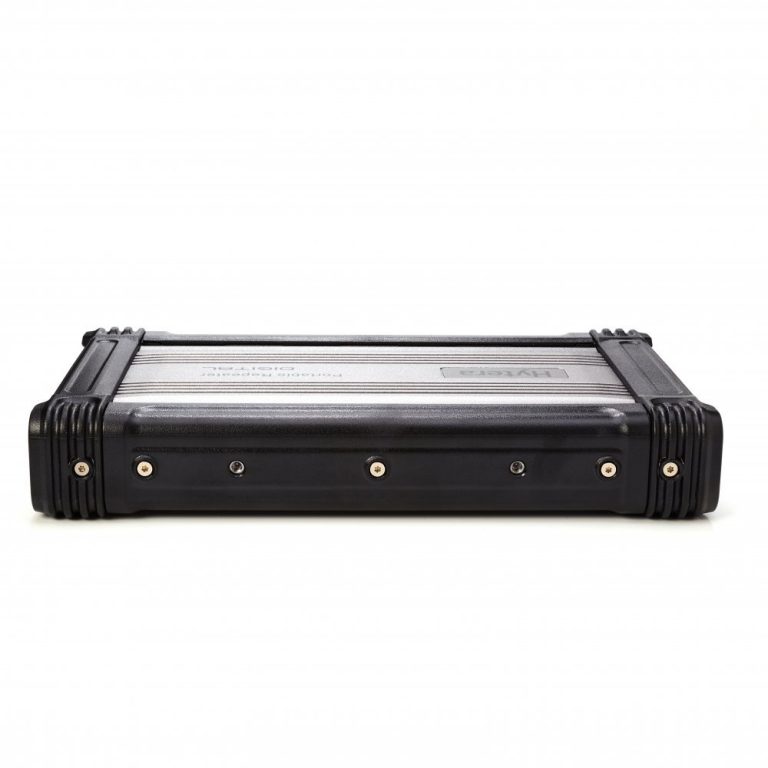

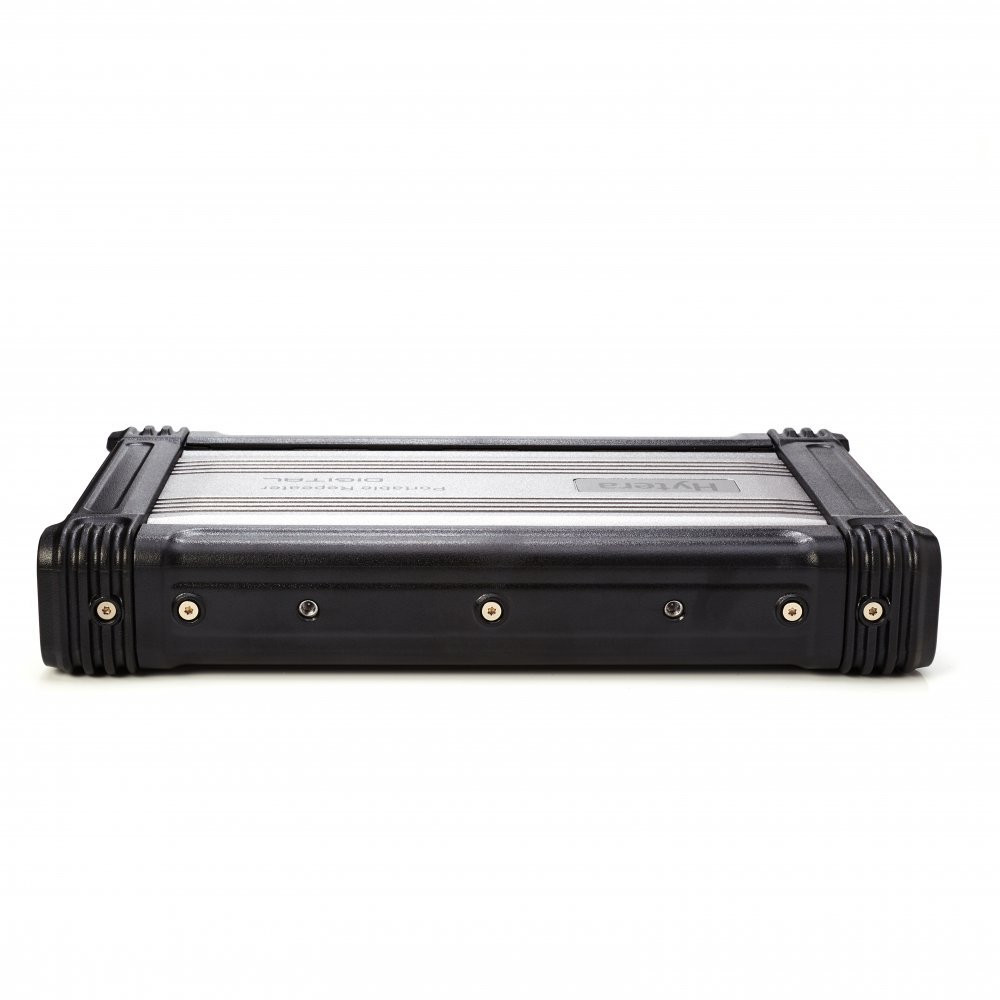

Hytera RD965

Hytera RD965

RD96X is Hytera’s first digital/analog portable repeater that is compatible with the DMR standard. Compact and embedded with a mini duplexer, the device is fairly wieldy. Equipped with a wide selection of components, RD96X easily fits into various application scenarios, whether on your back and a wall or in your suitcase and a cabinet. It supports a range of power supply plans to guarantee uninterrupted communications during emergencies; its API and 100 Mbps network port combine to support an extended array of applications; the device provides IP67 protection, making it reliable in any hostile operating environment.

Slim and Portable

Based on a compact design, the device measures only 42mm and weighs less than 5kg, (include the 10Ah battery).

Flexible Applications

Fitted with a wide variety of components, the product can be desk or wall-mounted for in-building coverage, installed in a mobile suitcase or cabinet for emergency communications, or carried on the back for forest firefighting.

Built-in Duplexer

Embedded with an optional mini duplexer, RD96X can be slimmer in size.

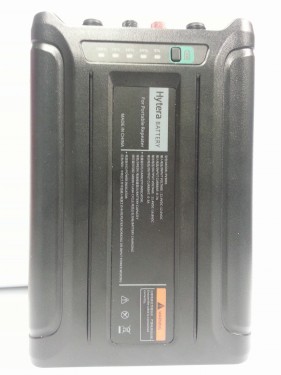

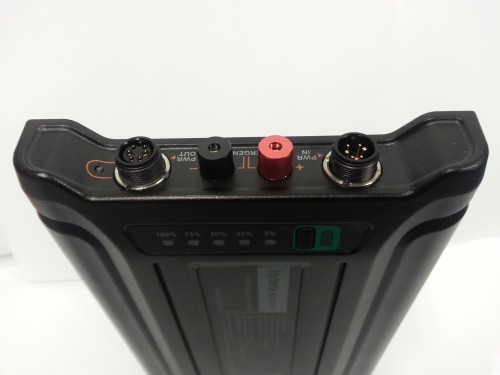

External Battery

With an external large-capacity battery, the device delivers an extended battery life to guarantee uninterrupted communications.

Emergency Port

The port allows for power connection in emergencies.

IP67 Protection

Compatible with the IP67, the device can operate properly under immersion test (1meter for up to 30 minutes).

Reliable and Durable

Compatible with the American military standard MIL-STD-810 C/D/E/F/G and HALTverified, the device can perform excellently in hostile operating environments.

User-friendly Panel

The operating panel provides a wide range of channel status indicators, a button for channel adjustment, and a port for palm microphone or remote speaker microphone.

General

Frequency Range

VHF: 136 – 174 MHz

UHF1: 400 – 470 MHz

UHF2: 450-520 MHz

UHF3: 350-400 MHz

Channel Capacity

16

RF Power Output

5-10W (adjustable)

Operating Voltage

13.6 V ± 15%, Battery:14.8V

Current Drain

Standby: 0.8A

Transmit: 3.5A

Rated Audio Power Output

0.5W

Weight (With Duplexer)

3.5KG (Without standard battery)

Dimensions

H x W x D

483mm x 88mm x 366mm

Ingress Protection

IP67 Standard
