Hytera MD655

Hytera MD655

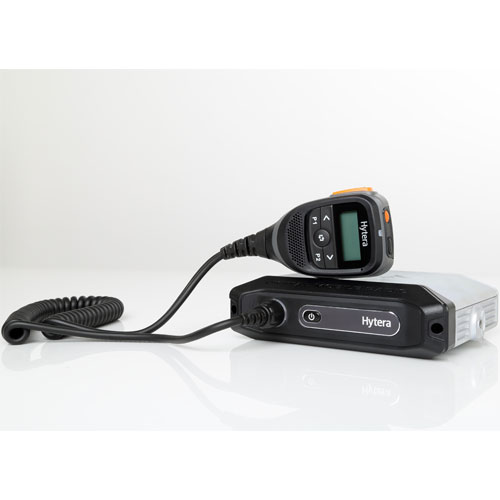

MD655

The lightest DMR mobile radio, RF output power adjustable from 1W to 25W, DMO True 2-slot, Easy operation microphone with display, Supports multiple advanced analogue signalling modes, including HDC1200, 2-Tone and 5-Tone for better integration into existing analogue radio fleets.

Lightweight, Sleek and Stylish

Only 165x46x140mm in size and weighs a mere 1.05kg (including smart microphone).

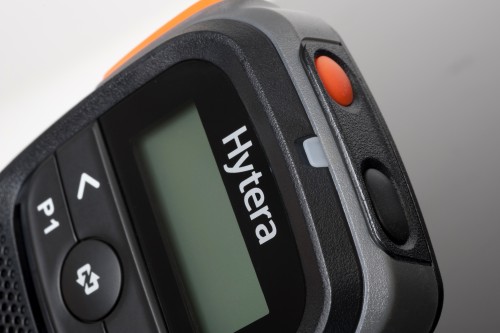

Remote Control

All operations are done via the microphone and are easy to use and control.

Selectable RF Power Output

Continuously adjustable from 1W to 25W.

Continuously adjustable from 1W to 25W.

Uses narrowband codec and digital error-correction technologies for superior voice clarity in noisy environments or at the edge of the coverage area. Also includes AGC technology for optimising voice input and output.

Advanced Signaling

Supports multiple advanced analogue signalling modes, including HDC1200, 2-Tone and 5-Tone for better integration into existing analogue radio fleets.

Versatile Services

In addition to conventional communication services, MD65X features rich data services and selectable functions such as: Text Message, Telemetry, Emergency, OATP and GPS.

DMO True 2-Slot

In DMO mode, Hytera provides 2-slot communication which allows for two talk channels on a single frequency.

Dual-slot Pseudo Trunk

With this feature, a free time slot can be allocated to a member who needs to communicate urgently, effectively enhancing frequency efficiency and allowing timely communication in emergency situations.

Reliable Quality

MD65X is compliant with the stringent MIL-STD-810 C/D/E/F/G and IP54 standards, ensuring outstanding performance even in harsh environments.

GPS Positioning (Factory Option)

The built-in GPS module supports GIS applications.

General

Frequency Range

VHF: 136 – 174 MHz

UHF1: 400 – 470 MHz

Channel Capacity

1024

RF Power Output

VHF: High Power 25W

VHF: Low Power 5W



UHF1/ UHF3: High Power 25W

UHF1/ UHF3: Low Power 4W

Rated Audio Power Output

1.5W

Operating Voltage



13.6V ± 15%





Standby



<0.6A



                      Receive



<2.0A



                      Transmit

<5A (5W)

<8A (25W)

Dust and Water Ingress Protection

IP 54 Standard

Weight

1.05kg

Dimensions

H x W x D



165mm x 46mm x 140mm
