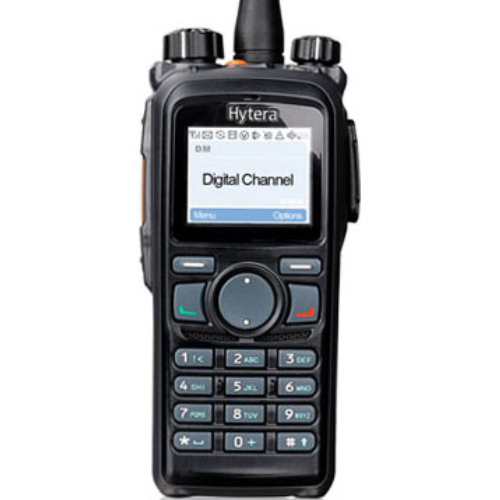

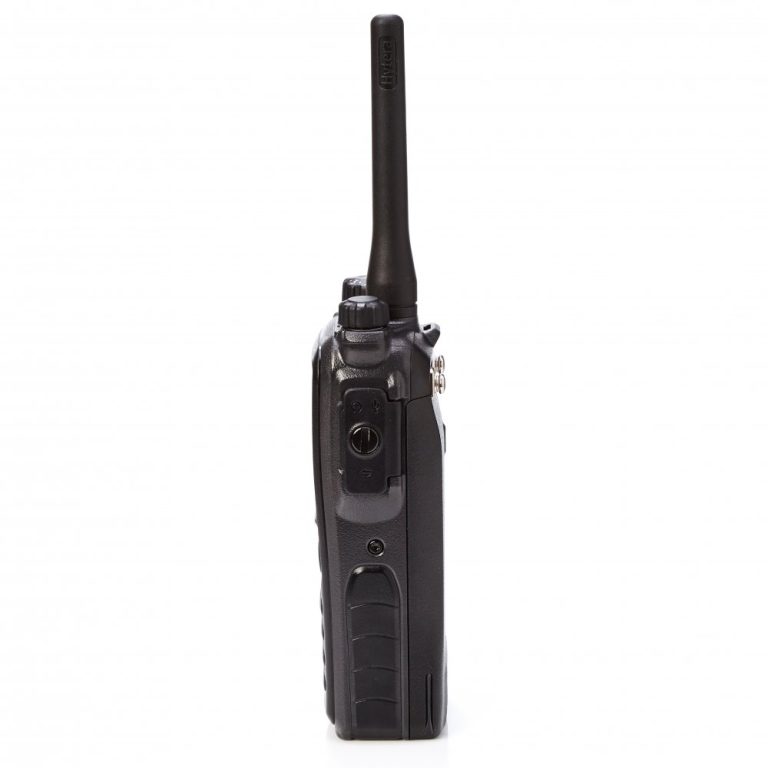

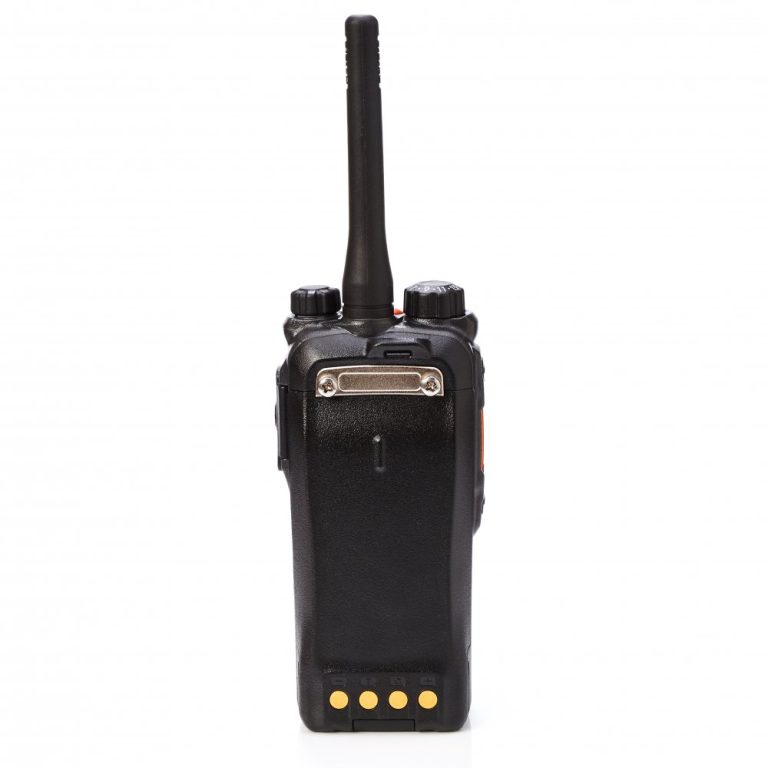

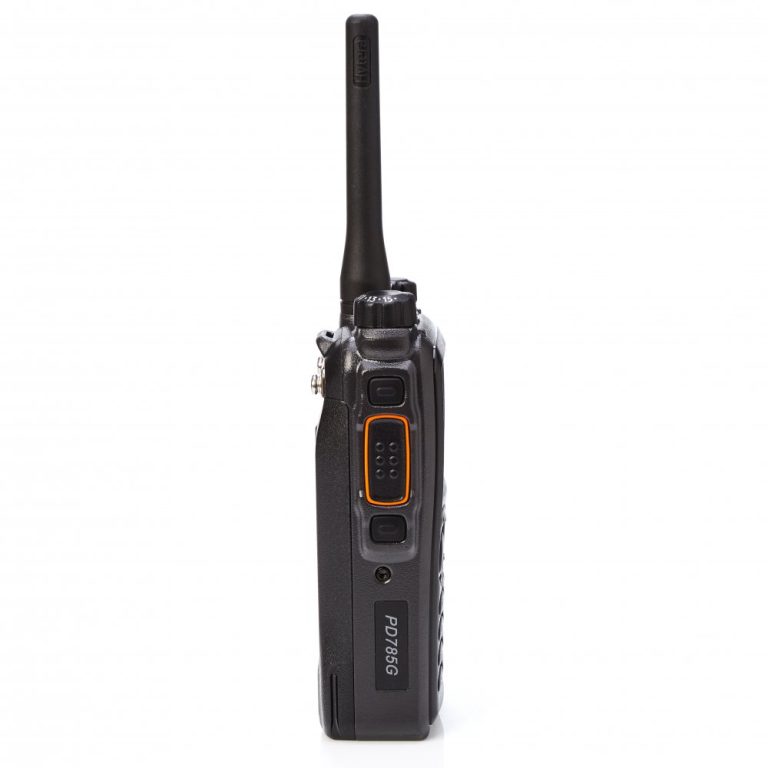

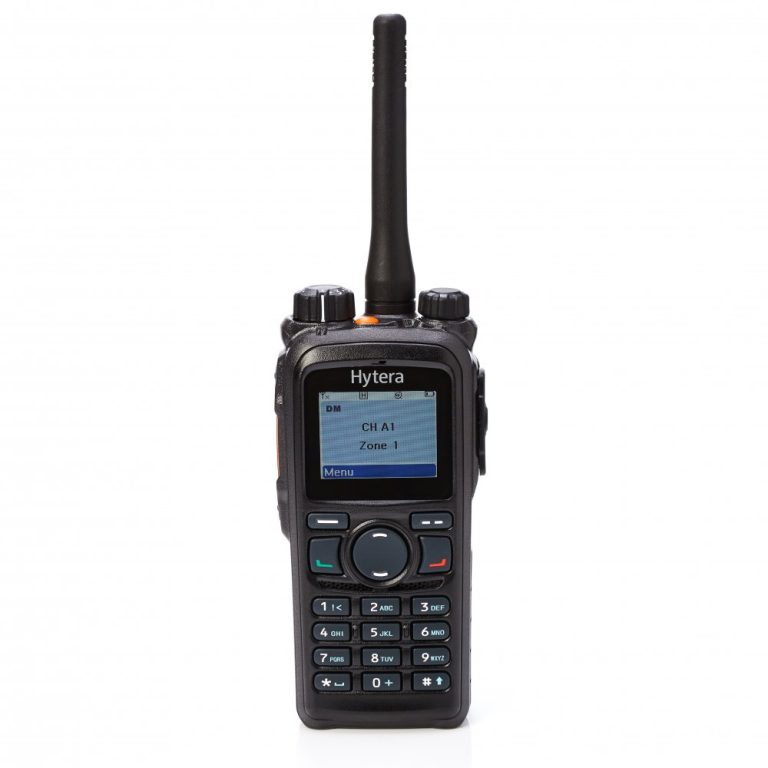

Hytera PD785

Hytera PD785

PD785 can operate in either analog or digital mode. It is compatible with the prevalent analog system, ensuring a smooth analog-to-digital transition, supports various analog signaling types (HDC1200, DTMF*, 2-Tone* and 5-Tone*), providing higher function expansion capacity, supports various analog signaling types (HDC1200, DTMF*, 2-Tone* and 5-Tone*), providing higher function expansion capacity.

Ergonomic Design

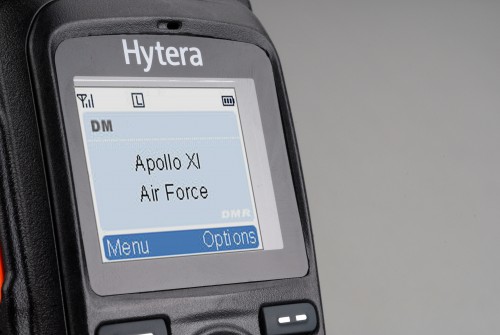

The large-size color display allows good visibility even under extremely strong light. The globally patented industrial design and antenna design ensure convenient operation and remarkable GPS performance

Reliable Quality

PD785/785G is strictly compliant with MILSTD- 810 C/D/E/F and IP57 standards, ensuring outstanding performance even under harsh environments.

Superior Voice

With the combined a p p l i c a t i o n o f narrowband codec and digital errorcorrection technologies, PD785/785G is capable of ensuring you superior voice under noisy environments or at the edge of the coverage area. In addition, the adoption of the AGC technology also optimizes your voice. With a built-in 1W speaker, PD785/785G ensures clear and crisp voice communication.

Durable Battery

Compared with an analog radio, PD785/785G can obtain an extra 40% operation time.

Higher Spectrum Efficiency, Higher Channel Capacity

Benefiting from the TDMA technology, PD785/785G allows twice the channels based on the same spectrum resource. This is a big help to relieve the stress of increasing shortage in spectrum resource.

Dual-slot Pseudo Trunking

With this feature, the free slot can be allocated to a member that needs to communicate, effectively enhancing frequency efficiency and allowing you to communicate timely under emergent situations.

Secure Communication

Besides the intrinsic encryption of the digital technology, PD785/785G provides enhanced encryption capability (such as 256-bit encryption algorithm) and the Scrambler feature (selectable).

Versatile Services

I n a d d i t i o n t o c o nv e n t i o n a l communication services, PD785/785G features rich data services and selectable functions such as Message, Scan, Emergency, Man Down (optional), Auto R e g i s t r a t i o n * , H i g h – s p e e d D a t a Transmission* and Lone Worker*.

Further Development Port

The reserved port in PD785/785G allows users or any third party to further develop other helpful functions (Message, GPS, Call Control and Telemetry).

General

Frequency Range

VHF: 136 – 174 Mhz

UHF1: 400 – 470 Mhz

UHF3: 350 – 400 Mhz

Channel Capacity

32

RF Power Output

VHF: High Power 5W

VHF: Low Power 1W



UHF1/ UHF3: High Power 4W

UHF1/ UHF3: Low Power 1W

Rated Audio Power Output

0.5W

Battery Life

(5-5-90)

Analog: 10.5 Hours

Digital: 14.0 Hours

Dust and Water Ingress Protection

IP 57 Standard

Weight

335g

Dimensions

H x W x D

(Without Antenna)

135mm x 55mm x 35mm
