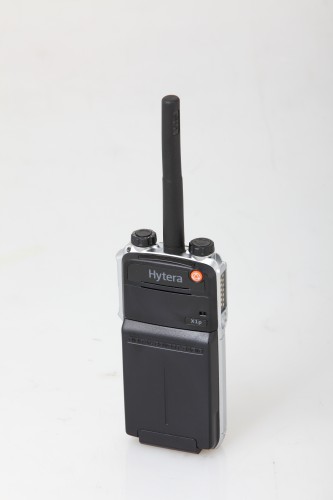

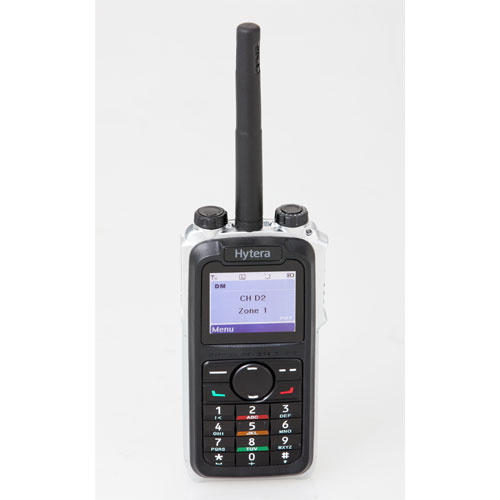

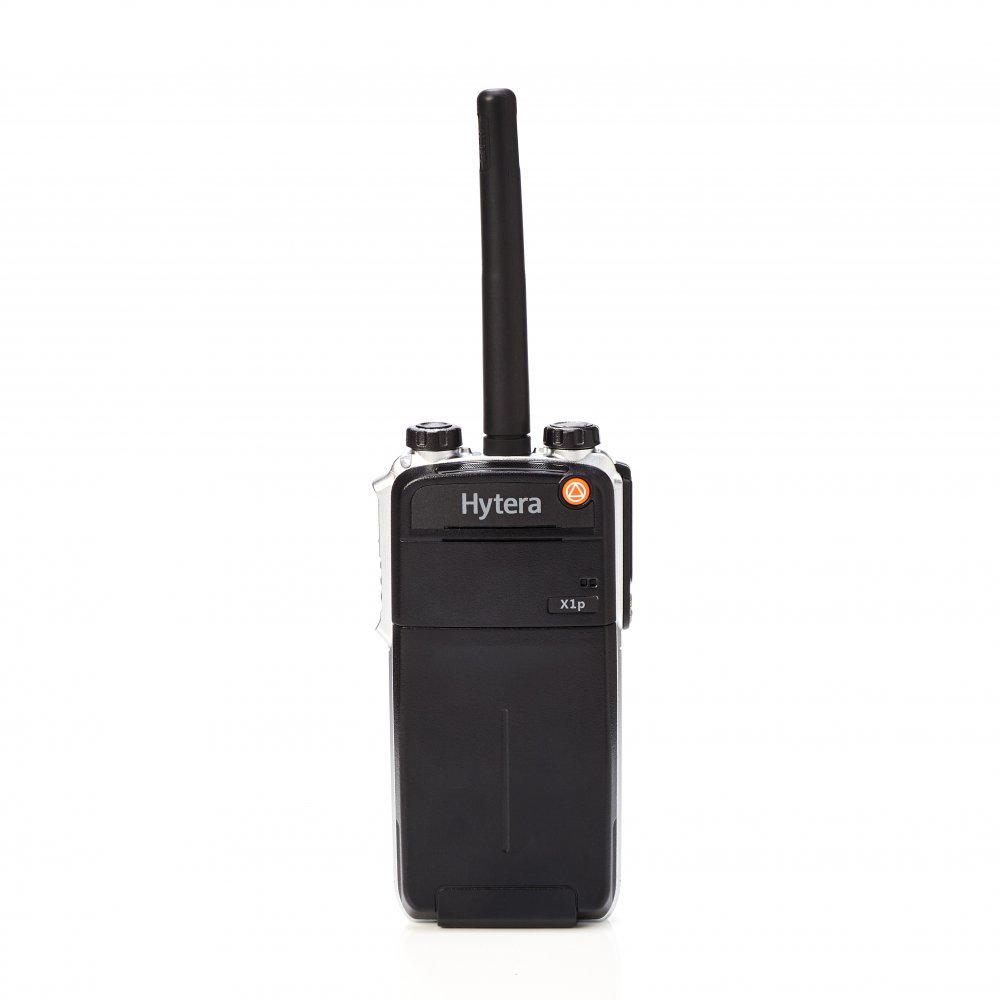

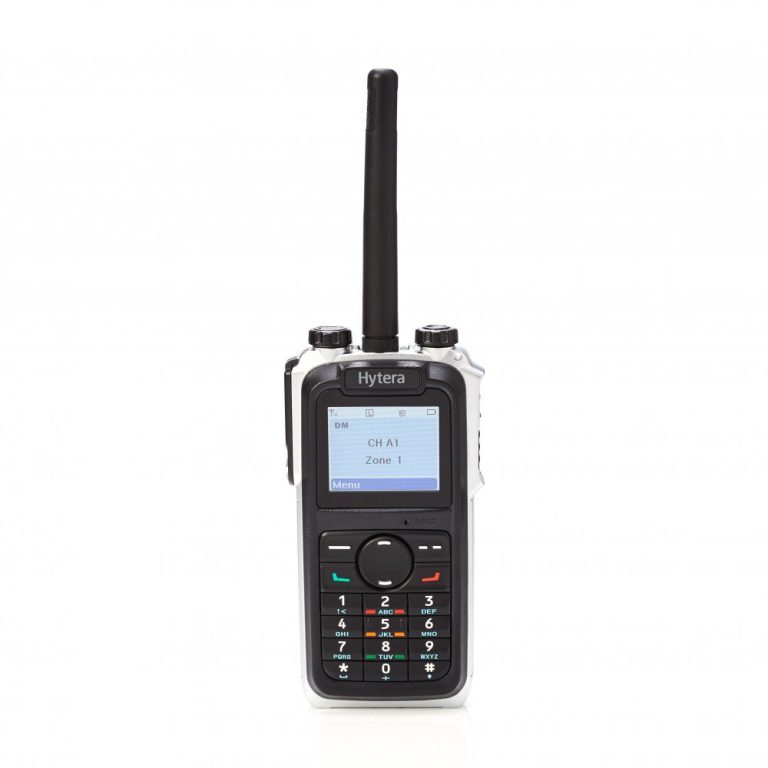

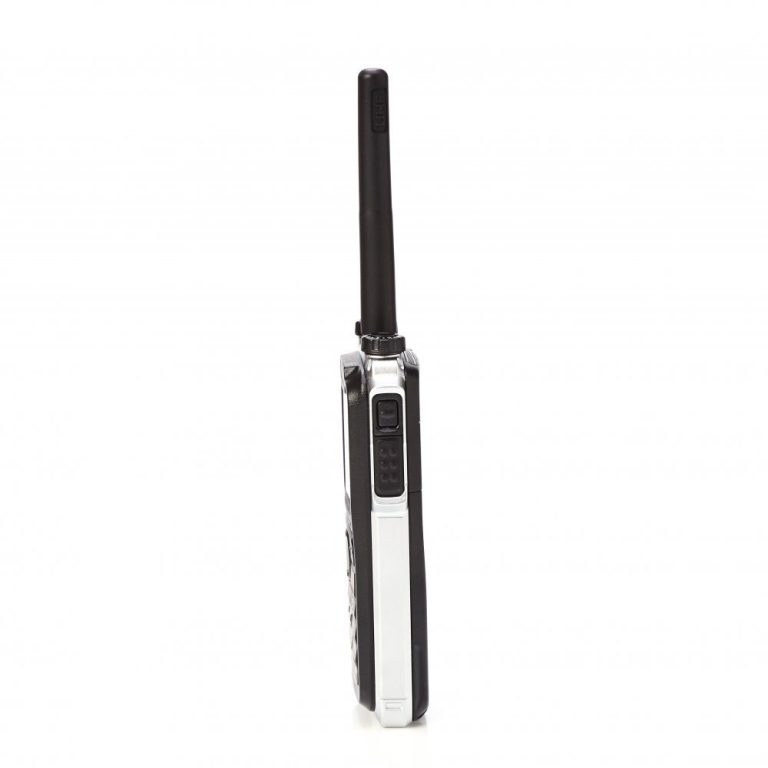

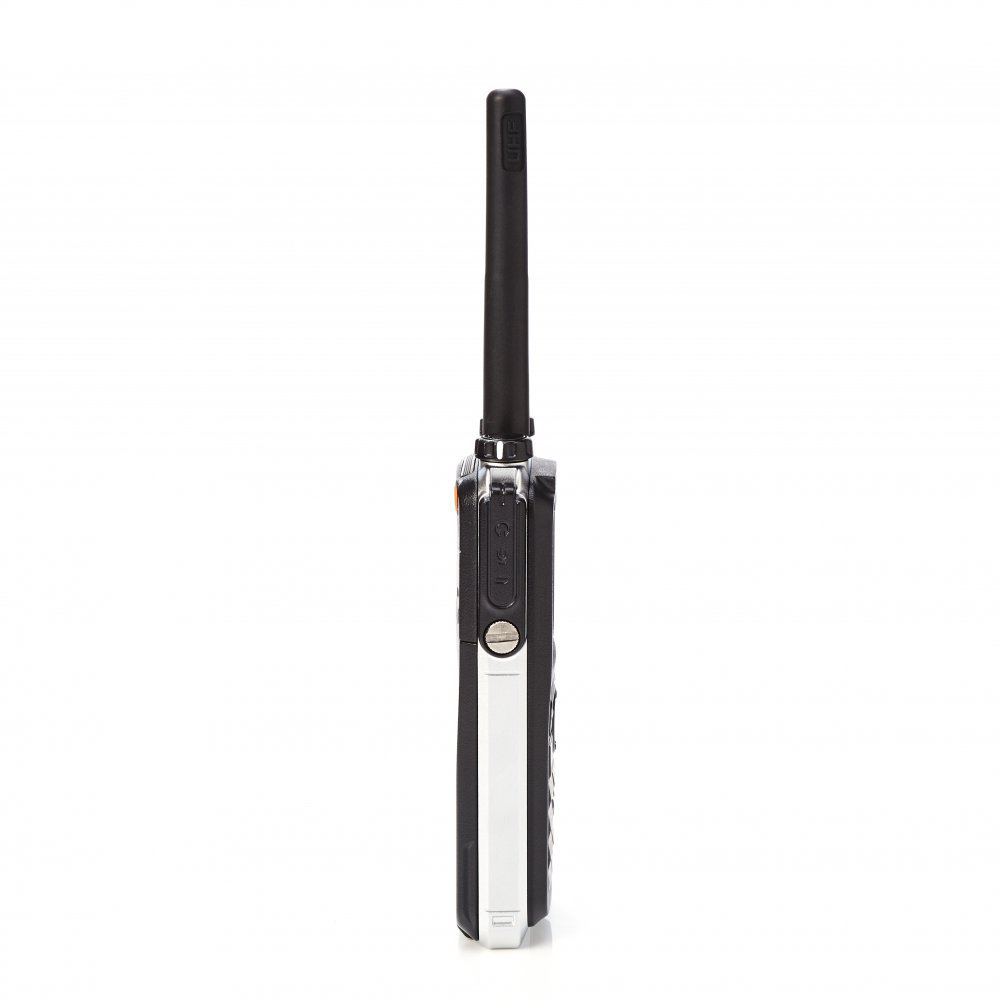

Hytera X1p

Hytera X1p

Hytera X1p, ultra-thin full power keypad digital portable radio, complies fully with ETSI open standard. Perfect combination of structural rigidity, versatile functionalities, and refined design; secure communication ensured by AES encryption algorithm & 256 digit dynamic encryption keys; convenient application development facilitated by built-in Bluetooth and USB port; and worry-free handling achieved by IP67 protection.

Ease of use

Easy to use with the rugged body as thin as 21mm, professional wireless headsets or collar microphone*, palm controller and flexible antenna.

IP67 compliance

Complies with IP67 requirements, withstanding up to 1m submersion for 30 minutes or more.

Rugged & reliable

Complies with MIL-STD-810 C/D/E/F/G standards and passes HALT (Highly Accelerated Life Test) .

Large-size Colour Display

X1p adopts a 1.8″ TFT LCD display (65536 colours), allowing good visibility even under outdoor strong sunlight.

Advanced encryption

AES encryption algorithm & 256 digit dynamic encryption keys ensure secure communication.

Supports Hytera Bluetooth earpieces*

The radio supports Hytera Bluetooth earpieces, facilitating operations.

Open USB interface

Open USB port facilitates secondary and application development.

GPS positioning

The built-in GPS module supports GIS applications.

Dual mode (analog & digital)

Dual modes (analog & digital) operation ensures a smooth analog-todigital migration.

Versatile voice calls

Versatile voice calls include individual call, group call and all-call.

Vibration

Vibration alerts the reception of voice call and message.

Rich signaling

Supports multiple advanced analog signaling, including HDC1200, DTMF, 2- Tone* and 5-Tone, providing more expansion capacity.

Software upgradable

Upgradable software enables new features without buying a new radio.

General

Frequency Range

VHF: 136 – 174 MHz

UHF1: 400 – 470 MHz

UHF2: 450 – 520 MHz

UHF3: 350 – 400 MHz

Channel Capacity

64

RF Power Output

VHF: High Power 5W

VHF: Low Power 1W



UHF1/ UHF2/UHF3: High Power 4W

UHF1/ UHF2/UHF3: Low Power 1W

Rated Audio Power Output

0.5W

Battery Life

(5-5-90)

Analog: 10 Hours

Digital: 14 Hours

Dust and Water Ingress Protection

IP 67 Standard

Weight

240g

Dimensions

H x W x D

(Without Antenna)

119.5mm x 57mm x 21mm
