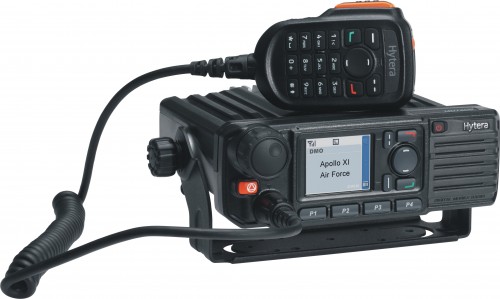

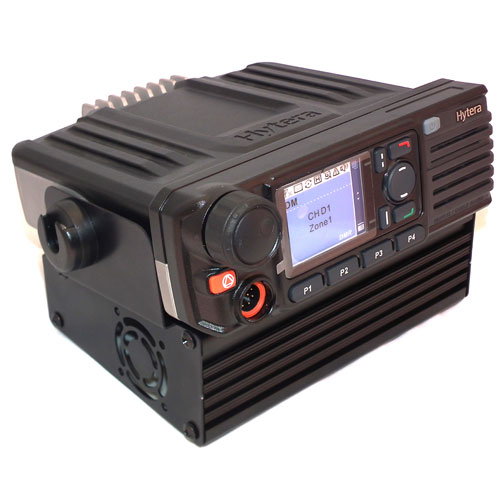

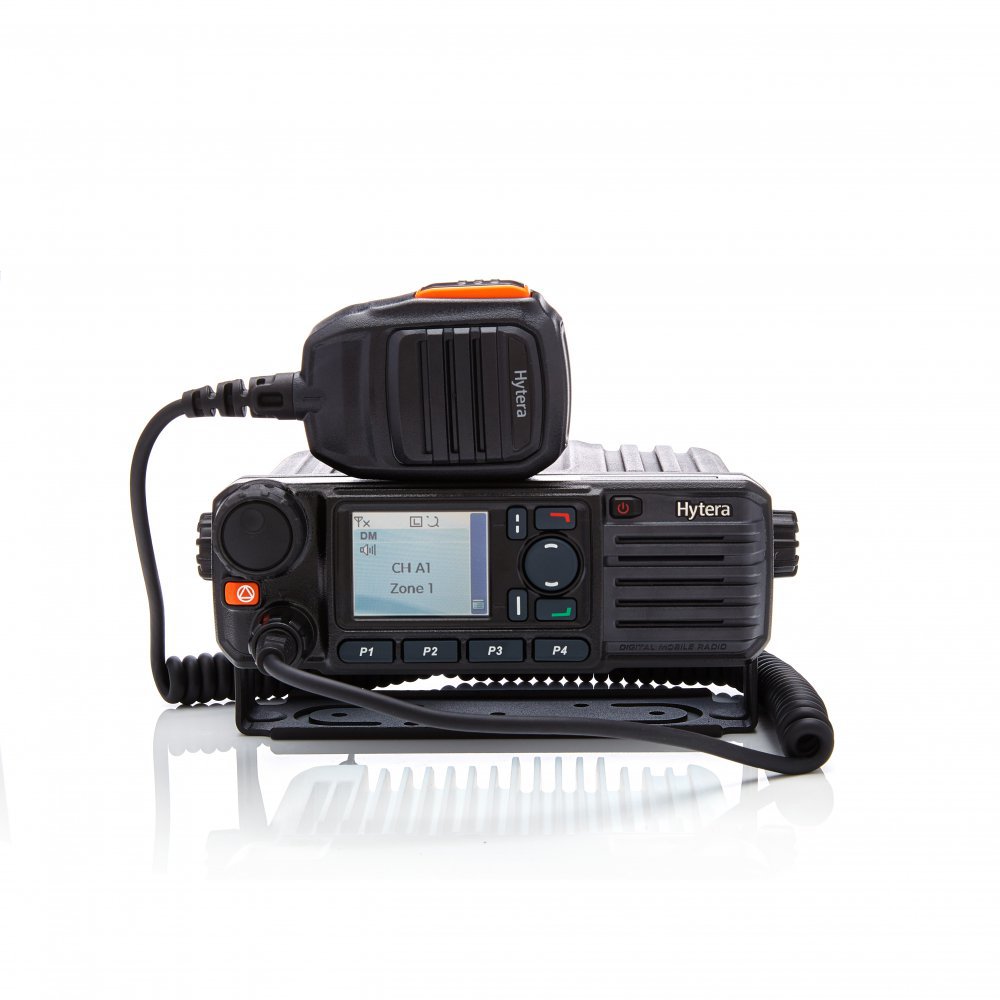

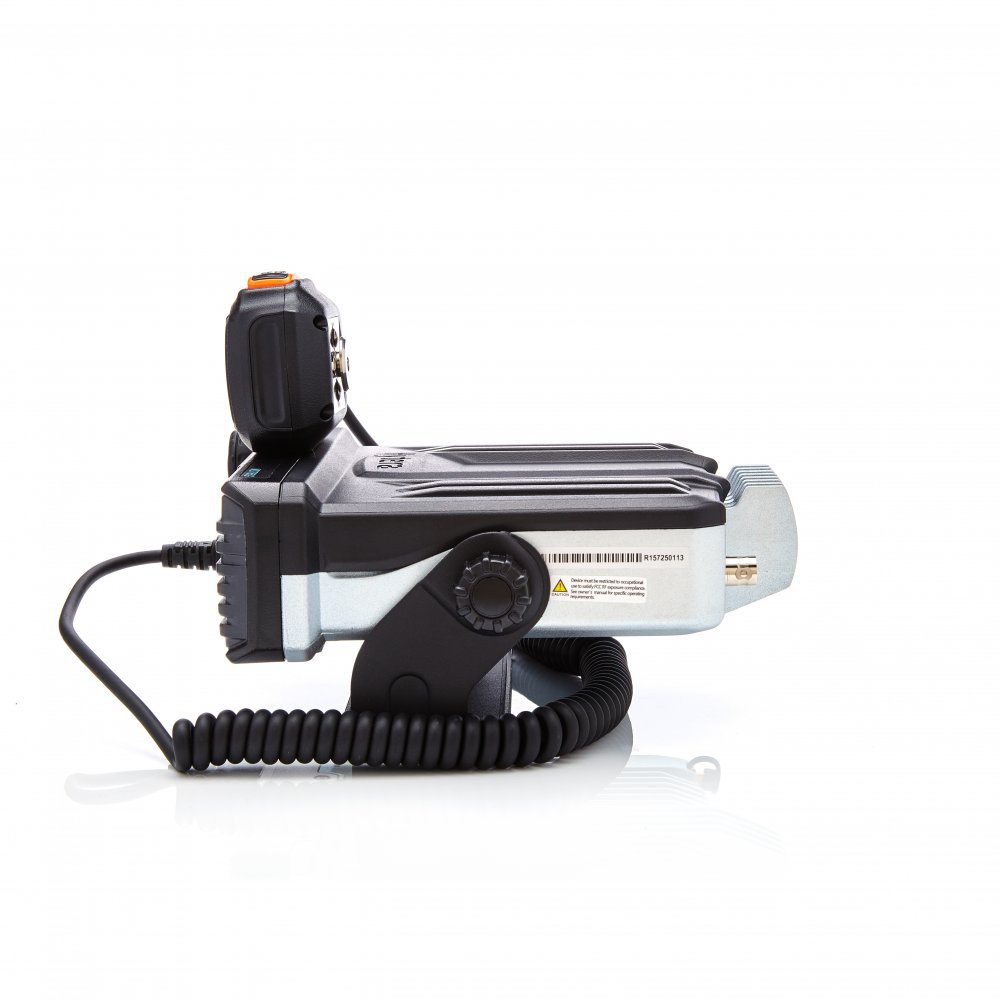

Hytera MD785

Hytera MD785

Dual Modes (Analog+Digital) MD785/785G can operate in either analog or digital mode. It is compatible with the prevalent analog system, ensuring a smooth analog-to-digital transition. Versatile Voice Calls Intelligent signalling of MD785/785G supports various voice call types, including Private Call, Group Call and All Call. GPS MD785G supports viewing of GPS positioning information and sending of GPS text message. IP Service* MD785/785G allows multiple IP functions if connected with a PC via IP address.

User-centered Design

The large-size color display allows good visibility even under extremely strong light. And the seven programmable keys facilitate your communication in various conditions.

Reliable quality

MD785/785G is strictly compliant with MILSTD- 810 C/D/E/F and IP54 standards, ensuring outstanding performance even under harsh environments.

Superior Voice

With the combined application of narrowband codec and digital error correction technologies, MD785/785G is capable of ensuring you superior voice under noisy environments or at the edge of the coverage area. In addition, the adoption of the AGC technology also optimizes your voice. With a built-in 5W speaker, MD785/785G ensures clear and crisp voice communication.

Higher Spectrum Efficiency

Higher Channel Capacity

Benefiting from the TDMA technology, MD785/785G allows twice the channels based on the same spectrum resource. This is a big help to relieve the stress of increasing shortage in spectrum resource.

Dual-slot Psuedo Trunk

With this feature, the free slot can be allocated to a member that needs to communicate, effectively enhancing frequency efficiency and allowing you to communicate timely under emergent situations.

Secure Communication

Besides the intristic encryption of the digital technology, MD785/785G provides enhanced encyrption capability (such as 256-bit encryption algorithm) and the scrambler feature (selectable)

Versatile Services

In addition to conventional communicationservices, MD785/785G features rich data services and selectable functions such as Message, Scan, Emergency, Emergency Footswitch, Channel Steering, Auto Registration, High-speed Data Transmission and Lone Worker

Further Development Plot

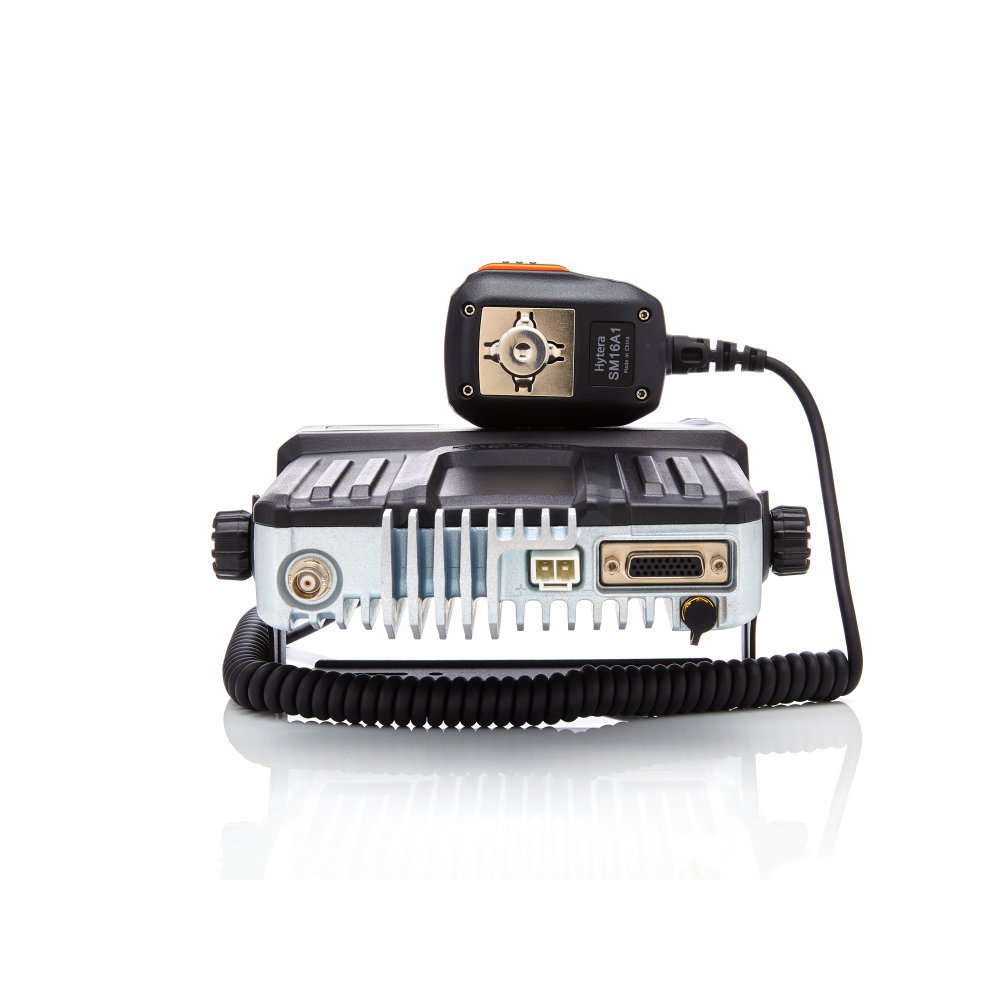

The reserved port in MD785/785G allows users or any third party to further develop other helpful functions (Message, GPS, Call Control and Telemetry).

General

Frequency Range

VHF: 136 – 174 MHz

UHF1: 400 – 470 MHz

UHF3: 350 – 400 MHz

Channel Capacity

1024

RF Power Output

VHF: High Power 25W

VHF: Low Power 5W



UHF1/ UHF3: High Power 25W

UHF1/ UHF3: Low Power 5W

Rated Audio Power Output

3W

Operating Voltage



13.6V ± 15%





Standby






<0.6A



                      Receive





<2.0A



                      Transmit

<5A (5W)

<8A (25W)

Dust and Water Ingress Protection

IP 54 Standard

Weight

1.7kg

Dimensions

H x W x D



60mm x 174mm x 200mm
