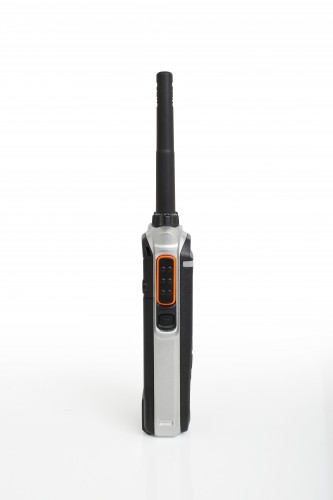

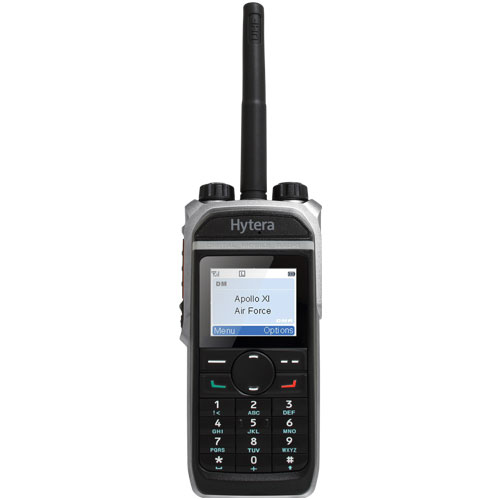

Hytera PD6

Hytera PD6

Full Band, Dual Mode (Analog & Digital), Secure Communication, DMRA Data Service, Further Development Port, Supplementary Features, DMO True 2-Slot.

Small, Sleek, Light

The size is 119 X 54 X 27mm (PD60X)/122 X 54 X 27mm(PD66X/68X), PC & Metal fram, weight is 290g (PD60X)/310g (PD66X/68X).

IP67 Compliance

IP67 rated withstanding up to 1m submersion for 30 minutes or more.

Rugged & Reliable

Compliant with MIL-STD-810 C/D/E/F/G standards.

Pseudo Trunk

This virtual trunking feature allocates a free timeslot for urgent communications. This effectively enhances frequency efficiency and allows you to communicate in a timely manner in emergency situations.

Full Band

Expanded frequency range of 400-527MHz.

Dual Mode (Analog & Digital)

Dual mode (analog & digital) operation ensures a smooth analog to digital migration.

Secure Communication

Provides basic/advanced digital encryption and Scrambler feature in analog mode.

Advanced Signaling

Supports multiple advanced analog signaling modes, including HDC1200, 2-Tone and 5-Tone, providing better integration into existing analog radio fleets.

DMRA Data Service

The data protocol is fully compliant to DMRA standard.

GPS Positioning (Factory Option)

The built-in GPS module supports GIS applications.

Man Down (Factory Option)

When a user falls down, the radio can automatically alert others.

Further Development Port

The reserved side port in PD60X allows users or any third party partner to further develop other helpful applications to extend radio functionalities.

One Touch Call/Text

Supports One Touch features that comprise of Preprogrammed Text Messages, Voice Calls and Supplementary Features. PD68X supports input 256 character message via keyboard.

Supplementary Features

PD60X provides radio enable/disable, remoter monitor and Priority Interrupt.

Radio Priority-Based Interruption

Enable an administration or manager radio to interrupt calls for emergency or urgent communication.

DMO True 2-Slot

In DMO Hytera can provide 2-slot communication, which allows for 2 talk paths on 1 frequency.

General

Frequency Range

VHF: 136 – 174 MHz

UHF1: 400 – 527 MHz



Channel Capacity

64 (PD605) 1024 (PD665/PD685)

RF Power Output

VHF: High Power 5W

VHF: Low Power 1W



UHF: High Power 4W

UHF: Low Power 1W

Rated Audio Power Output

0.5W

Battery Life

(5-5-90)

Analog: 11.0 Hours

Digital: 16.0 Hours

Dust and Water Ingress Protection

IP 67 Standard

Weight

290g (PD605) 310g (PD665/PD685)

Dimensions

H x W x D

(Without Antenna)

119mm x 54mm x 27mm (PD605)

122mm x 54mm x 27mm (PD665/PD685)
